Easy to use
One scanner, endless possibilities—perfect for 3D printing, cultural heritage preservation, reverse engineering, creative design, art, medical rehabilitation, and research & education. The ultimate 3D productivity partner for 3D printing farms, design studios, and small to medium-sized businesses.
Application scope
MQ enables true wireless freedom, eliminating cable constraints. It is intuitive and efficient—capture data anytime, anywhere, and bring your creativity to life effortlessly!One machine for multiple purposes
Advanced technique
3DeVOK MQ Empowers Professionals, Making Everyone A 3D Creator

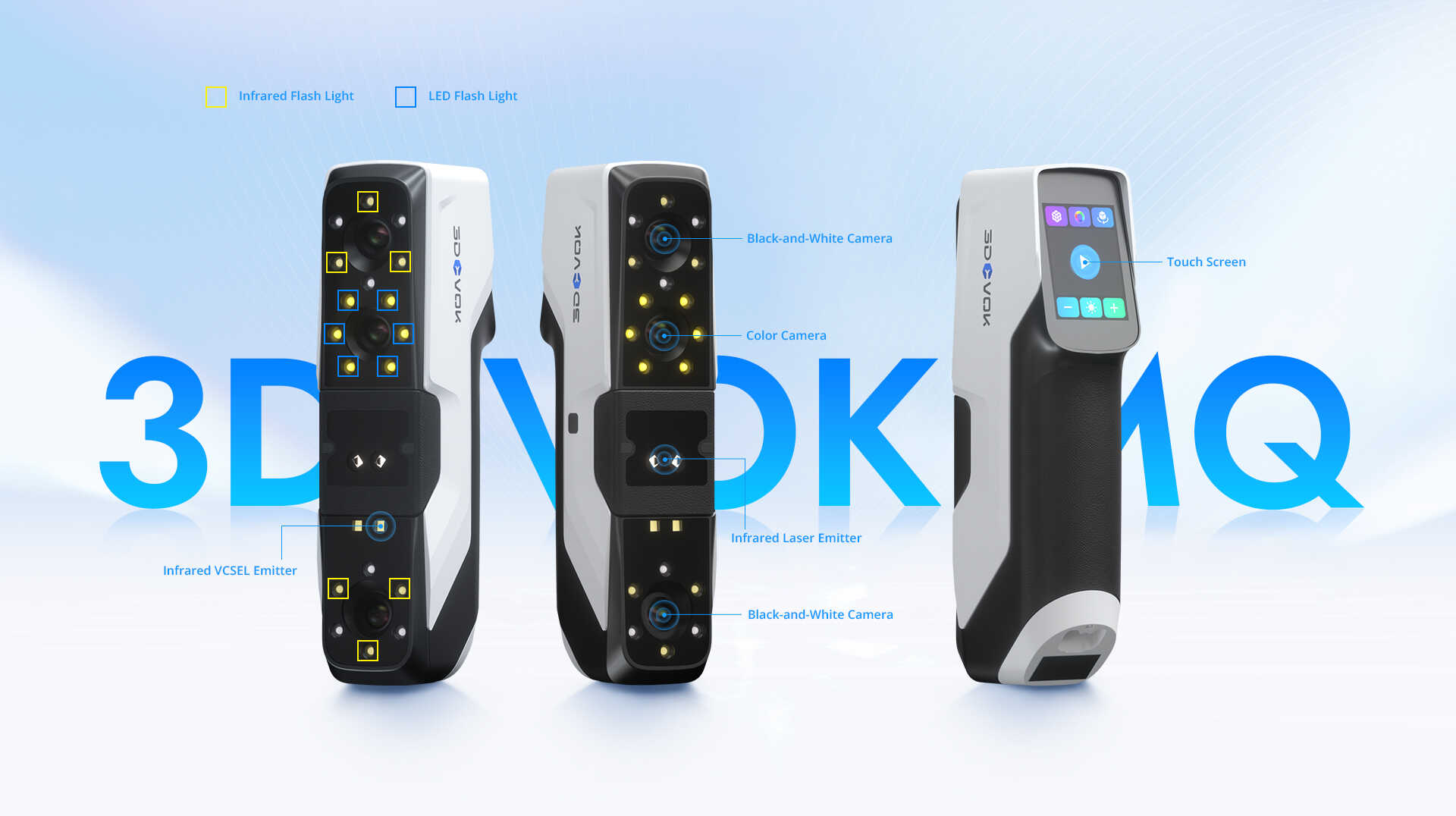

22-Line Infrared Laser + Large-Format Infrared Speckle
6 Key Featues for Exceptional
3D Scanning Every Time
3D Scanning Every Time
Part 1
Part 2
Part 3
Accurate
Up to 0.08 mm accuracy for highly detailed scans
Volumetric Accuracy
0.1mm resolution captures even the finest details
Fast
4.5 million points per second for professional efficiency
Marker-free
Infrared laser and speckle enable non-marker scanning
Vivid
24 -bit color + texture mapping for true-to-life colors

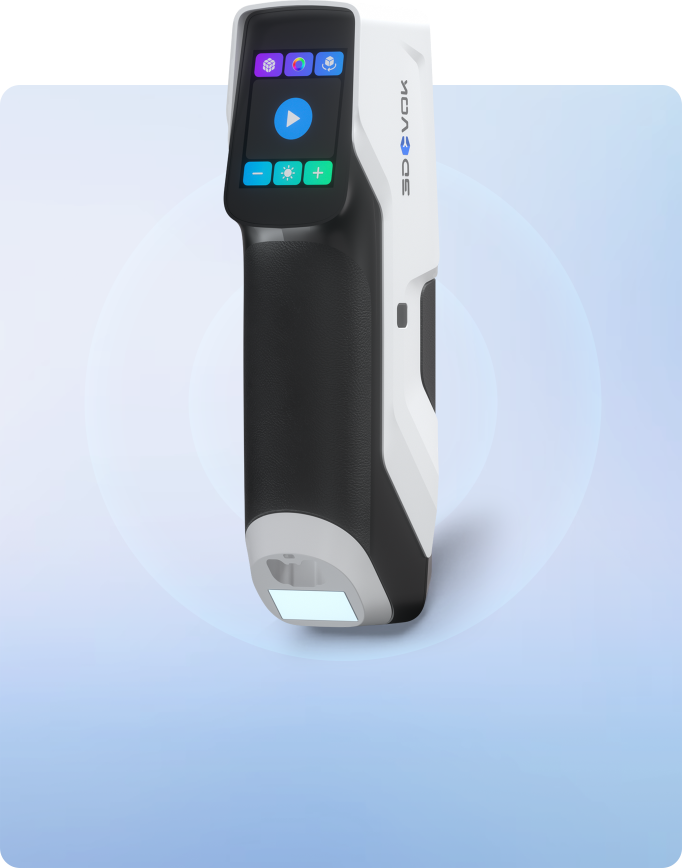

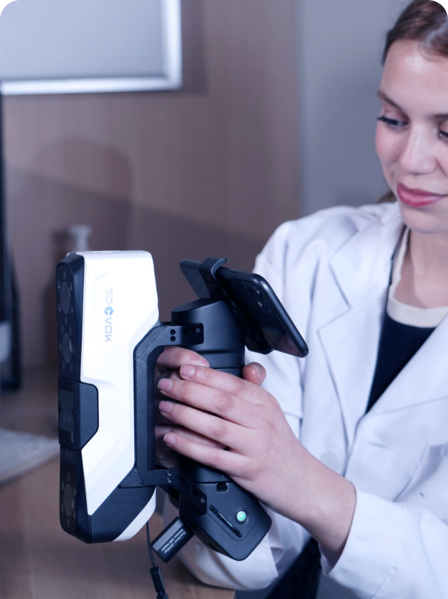

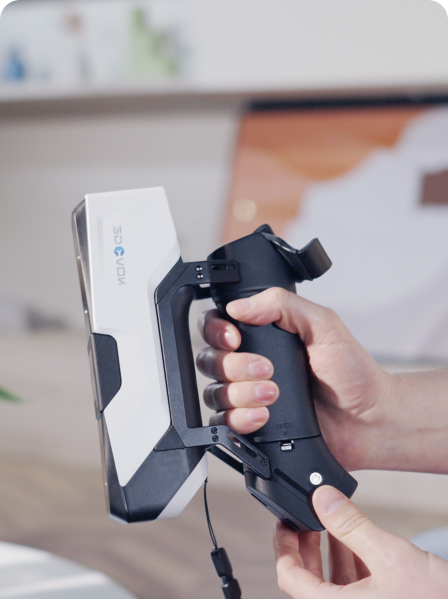

Wireless
Optional wireless handle for easy large-object scanning
Dual-Mode Laser
Boundless Scanning

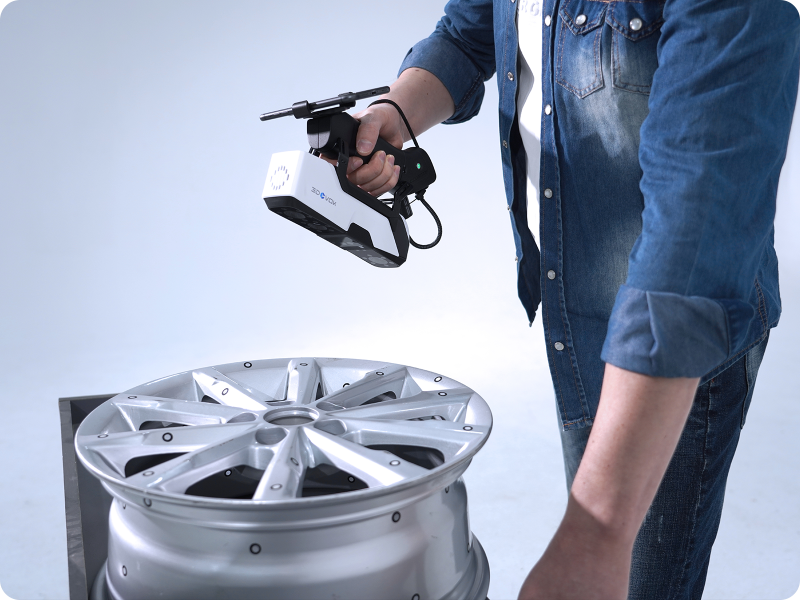

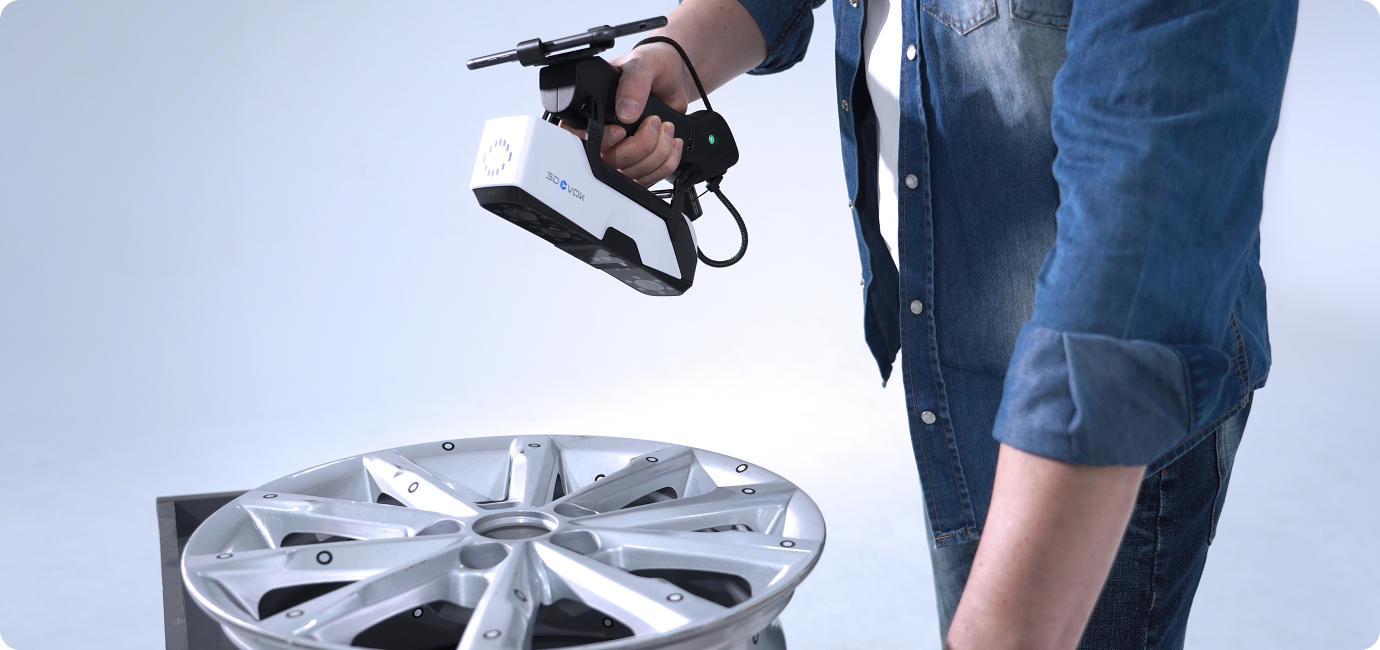

22-Line Infrared Laser

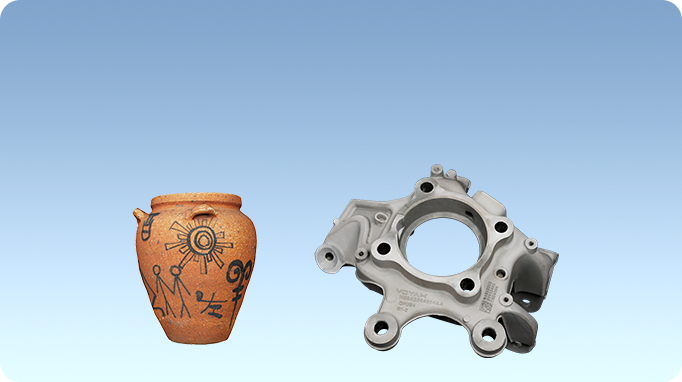

The MQ 3D scanner features 22-line infrared laser technology, enabling seamless scanning of objects as small as 5cm across various materials. With up to 0.08mm accuracy, it meets the quasi-industrial 3D data acquisition demands.

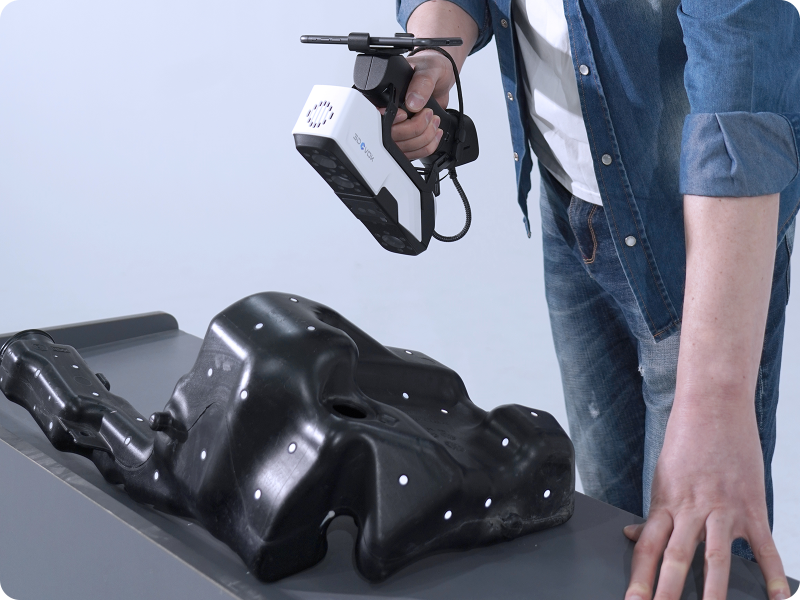

Large FoV Infrared Speckle
Designed specifically for scanning portraits, body parts, and medium to large objects (30cm and above), the ultra-wide scanning area reaches up to 1,100mm × 1,000mm, enabling fast scanning and easy operation.

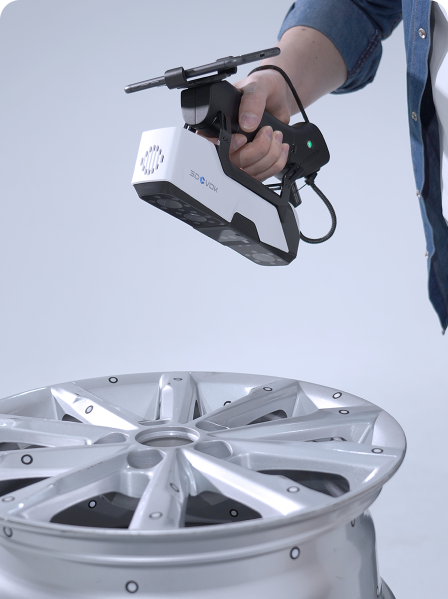

Marker-free Data Capture
Dual-Mode Laser (Infrared Laser & Infrared Speckle) enables marker-free 3D scanning, making 3D data acquisition more efficient and convenient.
Scene 1
Scene 2
Scene 3
Scene 4

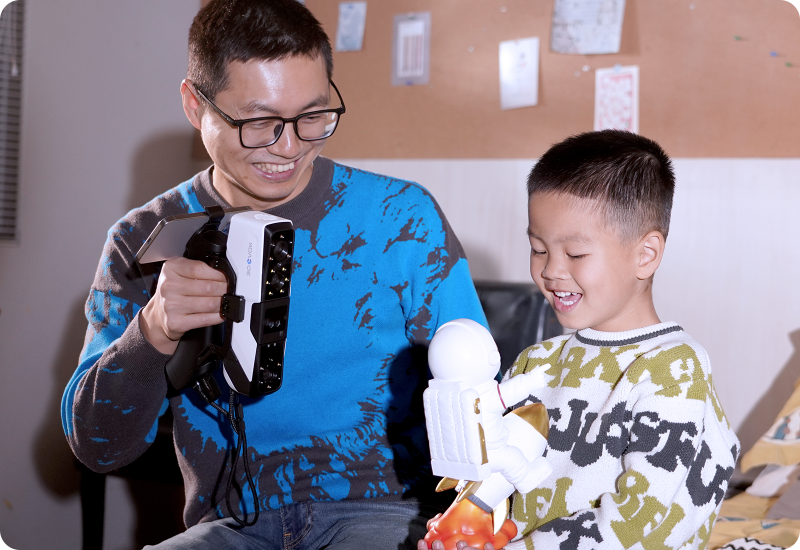

3D Printing
Bringing Creative Ideas to Life

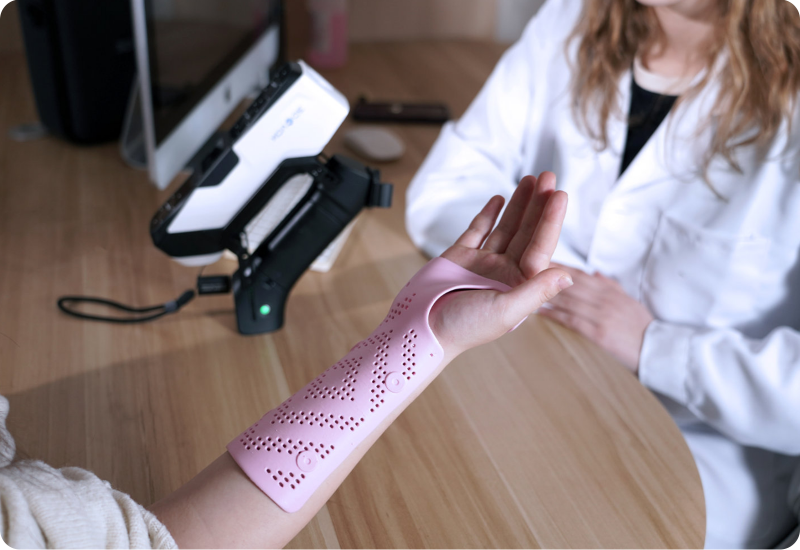

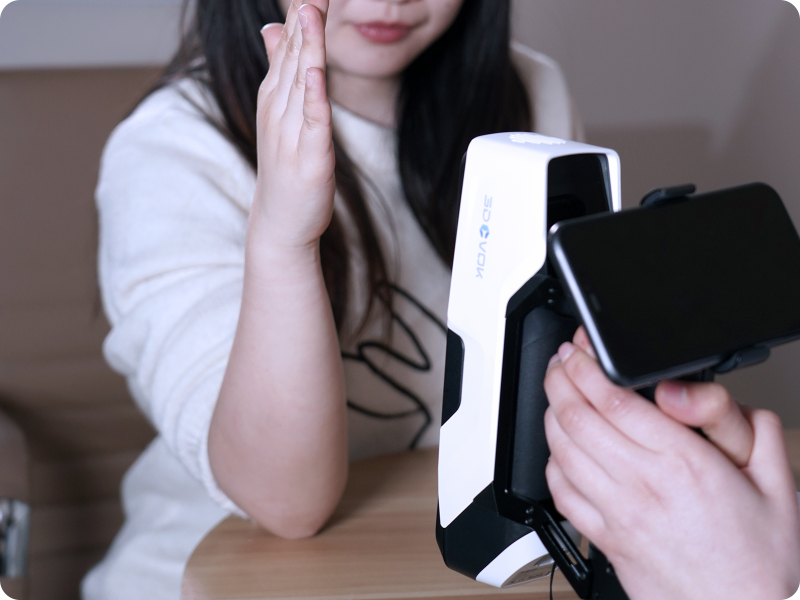

Medical Rehabilitation
Technology Enhancing Lives
Education & Research
Making New Technologies Accessible
Tech for All
Unlocking the Digital Future of Everything

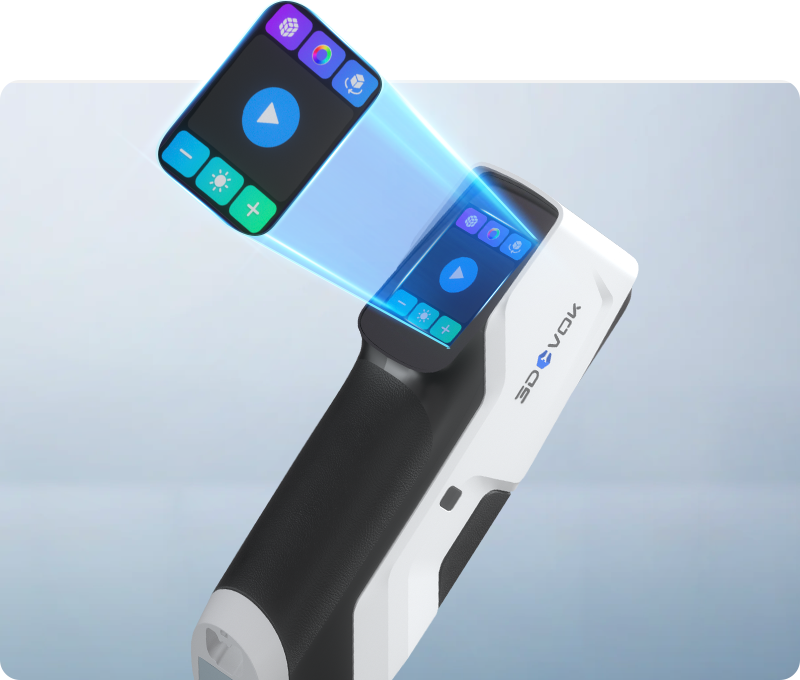

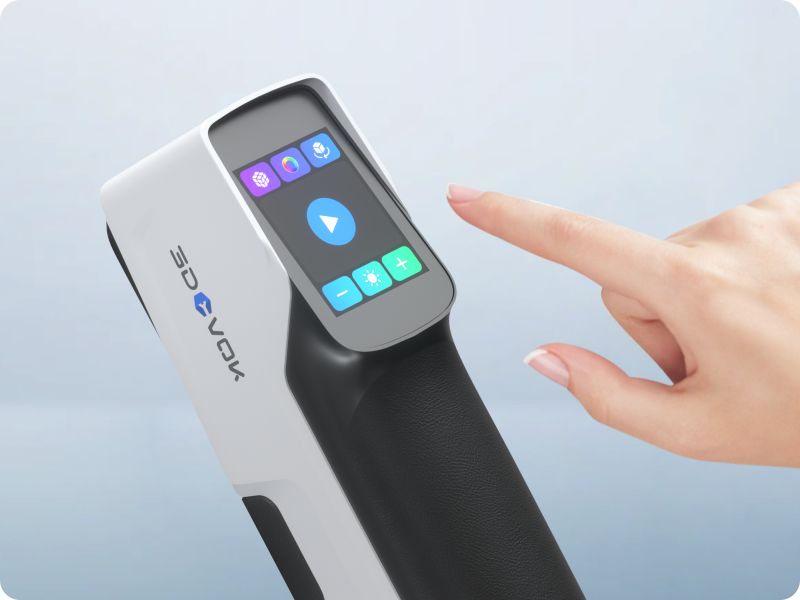

Built-In Touchscreen
Check status of 3D scanners and view software prompt on full-color touchscreen with an intuitive user interface
Smart Guidance
Get started quickly with next-gen software and customized guidance, cutting down on training time and making adoption smoother.
Technical Specifications
| Fuentes de luz | 22 líneas láser infrarrojas [invisible] | Luz estructurada por VCSEL infrarroja [invisible] |
| Clase de láseres | Clase ⅰ (ojo - seguro) | |
| Modos de escaneo | Líneas láser infrarrojas Admite marcadores e invisibles - escaneo de luz | Infrared Linear-array Structured Light (Speckle) Supports markerless scanning,invisible-light scanning, escaneo fino parcial y escaneo rápido a la distancia ultra - larga - rango y ultra - gran FOV |
| Exactitud* | Hasta 0.08 mm | |
| Hasta 0.08 mm | 0.1 - 5 mm | Escaneo regular: 0.2 - 5 mm de exploración fina: 0.1 - 5 mm |
| Distancia puntual | Support hybrid, markers, texture, y alineación de características geométricas | Apoya la alineación de características híbridas, texturas y geométricas |
| Capacidad para capturar la textura | Capacidad para capturar la textura | |
| Distancia de escaneo | 150 - 1,000 mm | 150 - 1,500 mm |
| Campo de visión | 140 mm × 140 mm - 490 mm × 490 mm | 50 mm × 75 mm - 1,100 mm × 1,000 mm |
| Marco de escaneo | Hasta 70 fps (alineación de marcadores) | Hasta 30 fps |
| Velocidad de escaneo | Hasta 2,450,000 puntos/s | Hasta 4,500,000 puntos/s |
| Formatos de salida | *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk | |
| La capacidad de la impresión 3D | Admite .stl, .obj y otros formatos | |
| Escaneo inalámbrico | Soporte (con un mango opcional) | |
| Rango de temperatura de trabajo | 0 - 40 ℃ | |
| Rango de humedad de trabajo | 10% - 90% Rh (no - condensación) | |
| Interfaz | USB 3.0 | |
| Dimensiones y peso del escáner | Dimensiones: 215 mm × 73 mm × 53 mm; Peso: 620 g | |
| Fuente de energía | DC: 12 V, 5.0 A | |
| Certificaciones | CE - EMC, FCC, ROHS, IEC 60825, IEC 62471, IEC 60529 - IP50, Weee, KC | |
| Configuraciones recomendadas para PC | OS: win10/win11, 64 - bit; CPU: i7 - 13650hx y arriba; Ram: 32GB y superior; Tarjeta gráfica: tarjeta gráfica discreta NVIDIA, NVIDIA RTX3060 y superior; Memoria gráfica: 6GB y arriba | |
| * Los resultados de la prueba de precisión teórica de laboratorio están sujetos a errores de incertidumbre. | ||
