TrackScan-DUO
TrackScan DUO is upgraded by TrackScan SOLO with wider measurement range and higher precision.
TrackScan-SOLO 3D System
TrackScan-SOLO 3D system includes 3D scanning and probing functions.
TrackScan-SOLO rapidly obtains high accuracy of the 3D model without attaching markers, truly realizing nondestructive testing.

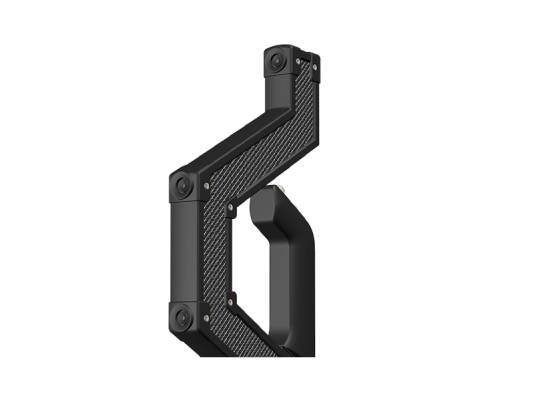

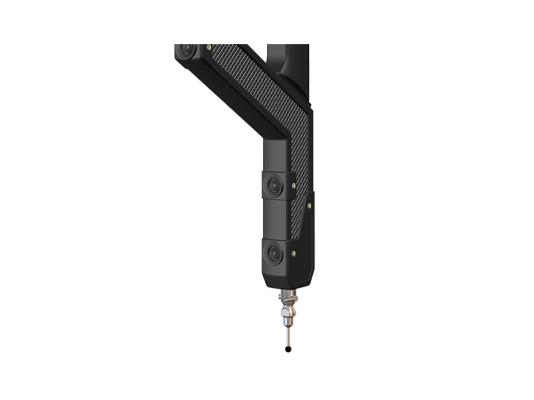

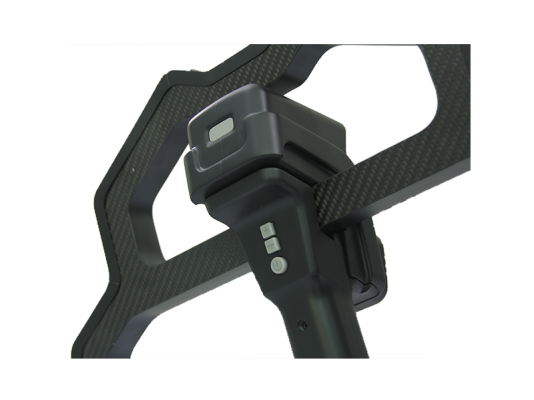

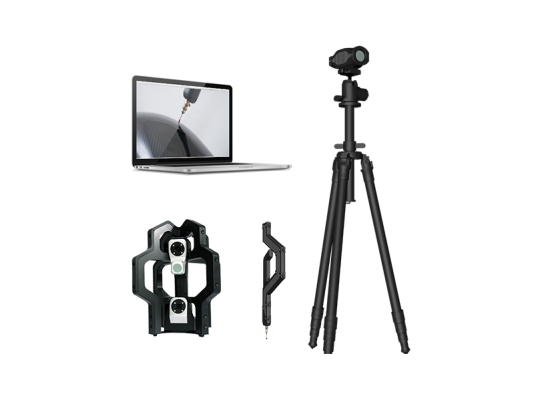

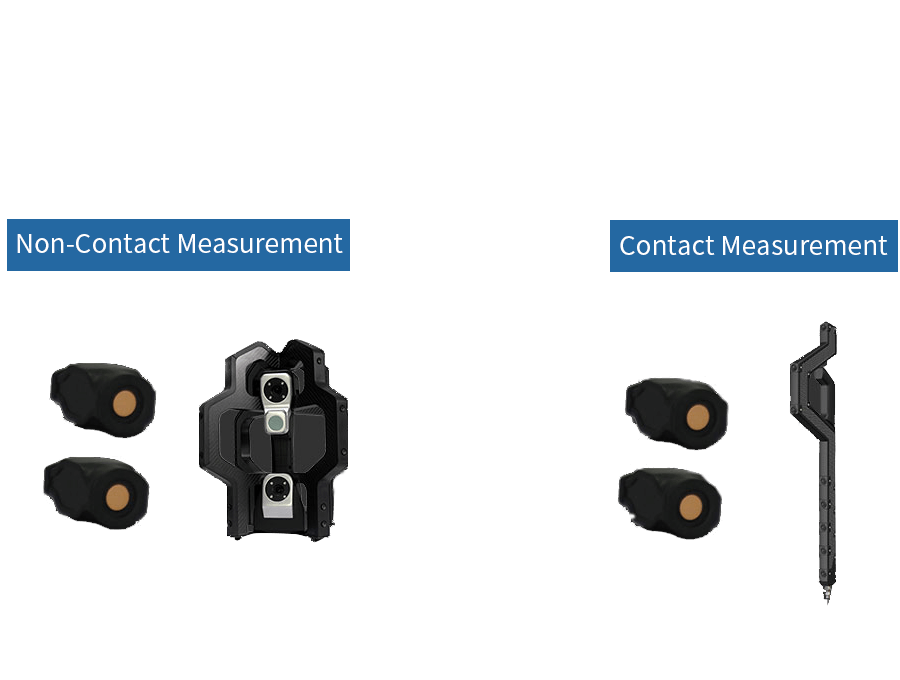

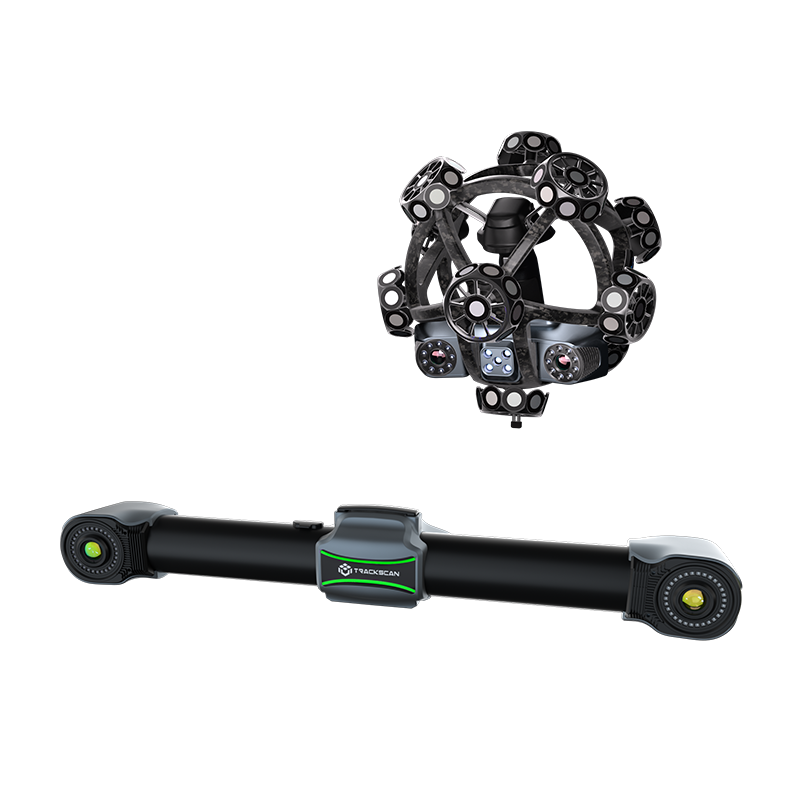

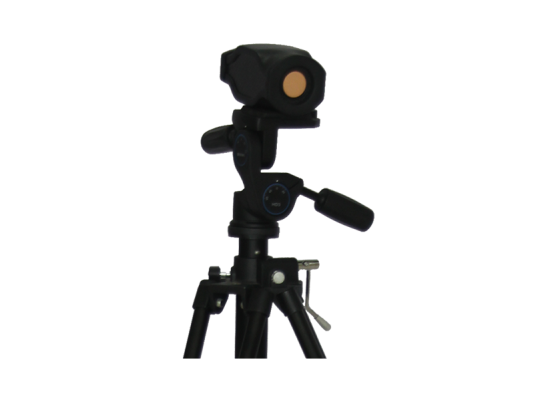

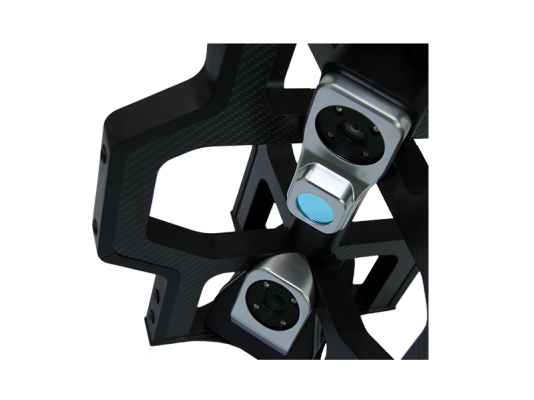

TrackScan-SOLO 3D system is composed of the M-Tracker navigation camera, 3D scanner and TrackProbe light pen. It has high flexibility and works directly without preparation.
Our latest product, TrackScan-P42 3D system adopts intelligent optical tracking measurement technology and high-quality optical equipment.
- Picture
- Video
- All
Tech Specs
| Type | TrackScan -Solo | ||
|---|---|---|---|
| Device | TrackProbe | TrackScan | |
| Measurement range | 15m | 6m | |
| System Accuracy | Up to 0.03mm | Up to 0.04mm | |
| Spatial accuracy | 2.5m | 0.08mm | |
| Spatial accuracy | 6m | 0.15mm | |
| Spatial accuracy | 10m | 0.30mm | – |
| Light pen | Wireless carbon material | – | |
| Probe type | Support quick change probe | – | |
| Resolution | 1μm | 0.05mm | |
| Laser class | – | ClassII(eye safe) | |
| Measurement rate | – | 480000 measures/s | |
| Stand-off distance | – | 300mm | |
| Depth of field | – | 250mm | |
| Output format | igs | stl、stp、igs、ply、xyz、dae、obj、asc | |
| Environment requirement | Work temperature | -10℃~45℃ | |
| Environment requirement | Storage temperature | -25℃~65℃ | |
| Environment requirement | Humidity | <95%，no condensation | |

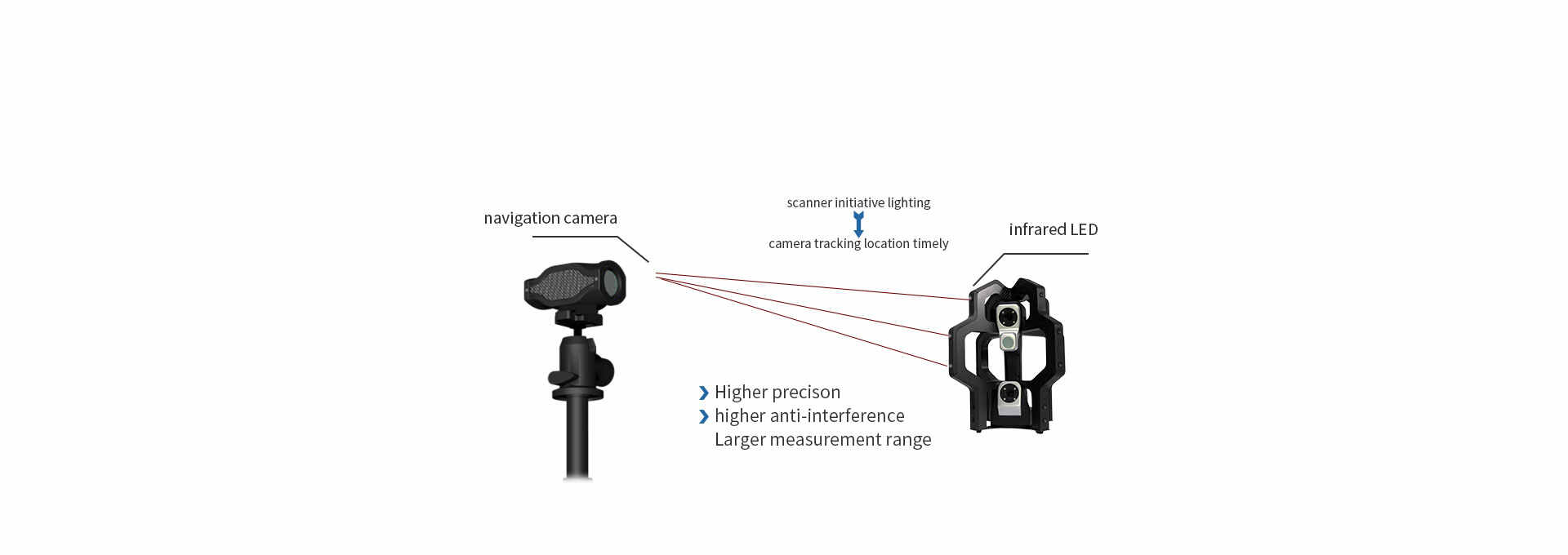

Unique Tracking Technology
Led optical tracking technology, without sticker, initiative location, deliver top precision 3D digital solution.

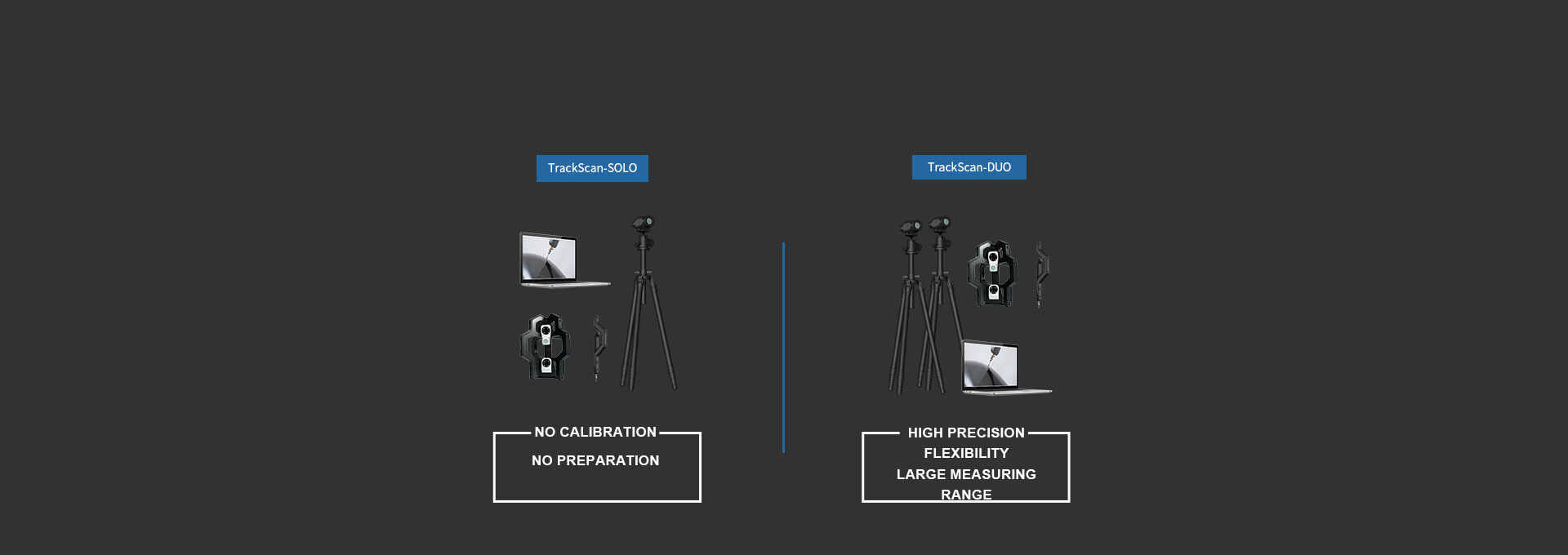

Dual Modes
Top Precision
Large Measurement Range
Flexible Measurement Solution

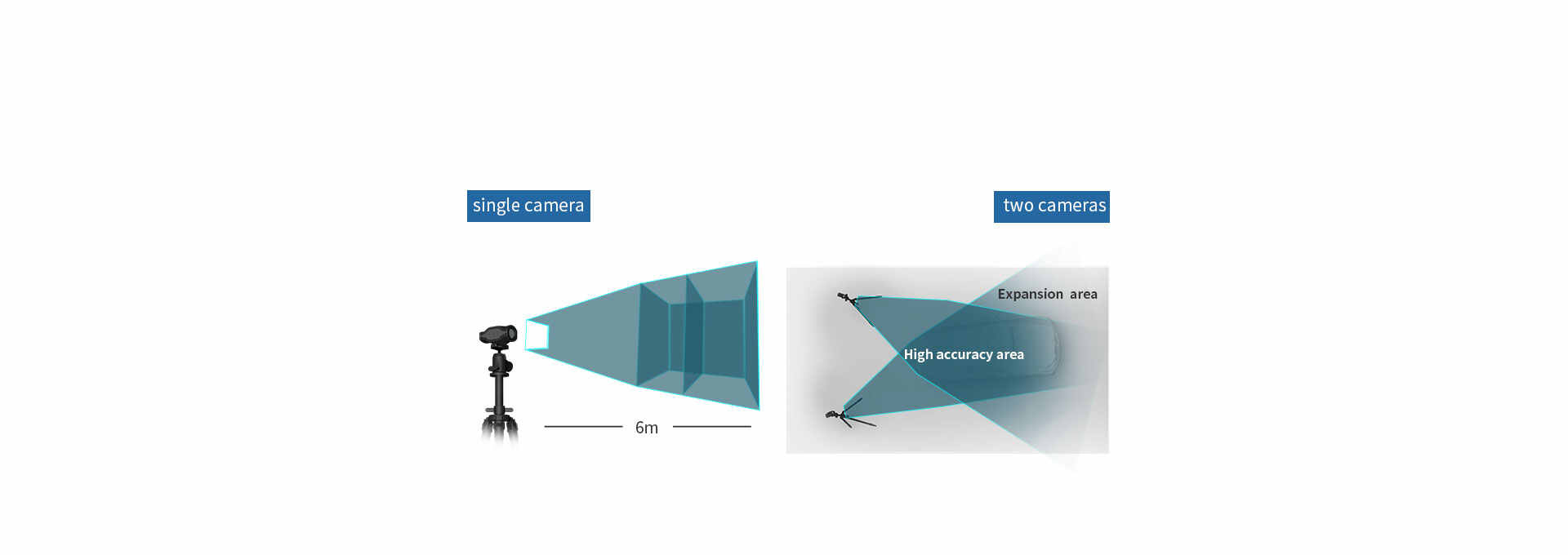

TrackScan-DUO with two sets M-tracker, involve all function of TrackScan Solo, support 1 or 2 cameras optical tracking solution.Expand special measurement and improve accuracy under 2 camera, adjust camera location according to scan area and accuracy requirements.
Military Quality
Carbon material with aerospace grade to ensure premium quality
Ready To Get Started?
Rebuild our 3D world with the most advanced 3D scanning system available.
Application
Aerospace
SCANTECH delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
Read the full application
Automotive
3D scanning technology realizes lower development cost, distinctive design, and strict quality control for automakers to explore more valuable potential market.
Read the full application
Mold
High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
Read the full application
Energy & Heavy Industry
SCANTECH 3D scanners carry a big weight in overcoming challenges for energy industry for 3D Measurement, 3D Scanner, 3D Scanning&3D Digital Solutions accelerate progress of R&D and strictly control product quality.
Read the full application
Railway and Ships
SCANTECH delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
Read the full application
Non-industry
SCANTECH delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
Read the full application
